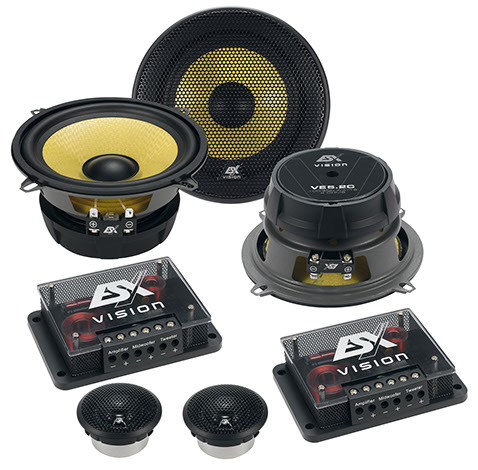

VE5.2C

13 cm (5.25") 2-Way Component System

The ESX VISION  loudspeakers impress with their extreme strength and high internal damping, which results in a very linear frequency range. This means an absolutely neutral, unadulterated reproduction of the music signal. The 25 mm voice coils on Kapton Former are driven by powerful, highly efficient Y35 ferrite magnets. In this way, the efficiency in the bass and midrange could be improved.



The driver is equipped with a very light CCAW wire (aluminum wire with copper cladding) and strong N38 neodymium magnets which guarantee a linear frequency response up to 25 kHz. The whole is perfectly coordinated by the 12 dB crossover with distortion-free air coils in the bass path and high quality film capacitors for higher frequencies. The tweeter level can be adjusted perfectly in 4 steps with a voltage divider to match the sound with the vehicle acoustics. If the system is combined for example with a loud subwoofer, the mid-level can be increased by about 2 dB to being able to keep up with the level and the dynamics of the bass.

Specifications

13 cm (5.25") 2-Way Component System

Power Rating 100/200 Watts RMS/Max.
Impedance 4 Ω

Frequency Range 64 - 25000 Hz

Warp-resistant Kevlar Cones

25 mm Silk Dome Tweeters

Tweeters with coupled Housing

12dB Crossovers

Mids adjustable in 2 volume levels

4-fold tweeter level attenuation with overload protection

Protection Grilles

Installation depth 61 mm

Installation diameter 117 mm

Downloads

Owner's Manual

€ 249,00

Manufacturer's suggested retail price, changes and mistakes reserved.
