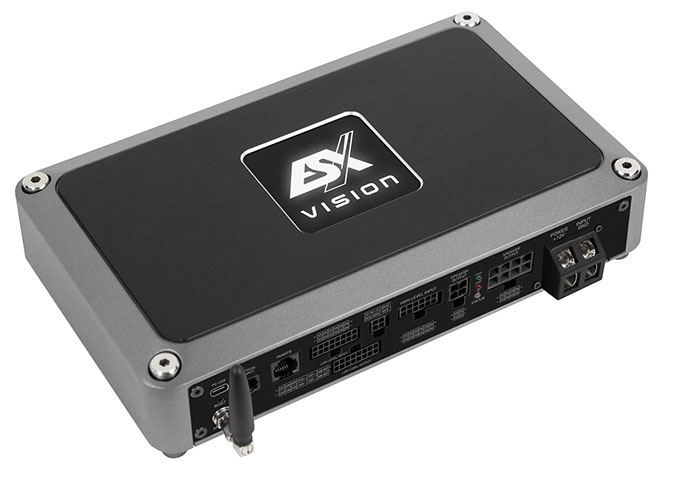

VE1000.6SP
6-Channel Class D Amplifier with 12-Channel Sound Processor
With its sophisticated power architecture, the VE1000.6SP makes a powerful statement in the DSP amplifier class. 2 x 100 watts RMS at 4 ohms and an additional 4 x 200 watts RMS at 2 ohms offer more than enough reserves to effortlessly drive even demanding multi-channel sound systems – from precise front speakers to powerful auxiliary channels. At the heart of the VE1000.6SP is the integrated signal processor, which allows for maximum control over the entire setup. Six additional freely configurable RCA outputs enable precise adjustment of delays, levels, and filters for external components, allowing for individual customization to the vehicle, speakers, and personal sound preferences. This transforms every installation into a finely tuned sound concept at the absolute highest level.
The absolute highlight of the VE1000.6SP is the integrated high-end DSP: none other than the EISA Award-winning ESX QL812SP has been fully integrated into the amplifier. The fully-fledged dual-core processor offers enormous computing power and enables precise adjustments of delays, crossovers, and levels – at a level otherwise reserved for external high-end DSPs. This results in an uncompromising overall package for audiophile multi-channel systems.
In the VISION ELITE class, Bluetooth modules are on board as standard. Not only is music streaming possible, complete control of the built-in DSP is also child's play. Simply download the ESX DSP Toolkit app onto a tablet or mobile phone and off you go.
Important note: To run the ESX DSP Toolkit app on an Android smartphone, Bluetooth and GPS must be activated.
Features
- Analog Devices™ ADAU1452 32 Bit Processor, 294 MHz, Full HD Audio 96 kHz
- AKM Velvet Sound™ Series 5 Signal Converter, A/D 32 Bit, D/A 32 Bit
- HPF/LPF/BP @ 6-48 dB, Phase Shift, Time Correction 0 ~ 20 ms/0.01 ms steps
- Input Mixer, Subwoofer Control, Priority Input Mode for digital Sources
- DSP Control via ESX DSP Toolkit
- PC Software for Microsoft® Windows™ 10 or newer - Integrated Bluetooth® Receiver (incl. Antenna) for DSP control via App and Fully HD Audio Streaming
Bluetooth-Version 5.0, Profiles: A2DP/AVRCP, Codecs: aptX, aptx LL, AAC, SBC - REM OUT function for external devices, MODE switching input for e.g. convertible tops (Preset Auto Switch)
- Optional Accessories: RC-DQ (LCD Remote Controller)
- Dynamic Loudness Adjustment (DLA)
- 12V & 24V Operation
Specifications
Class D 6-Channel Amplifier with
Digital 12-Channel Sound Processor
2 x 100 Watts RMS @ 4/3 Ω + 4 x 200 Watts RMS @ 2 Ω
Frequency Range 5 ~ 45.000 Hz
Signal-to-noise Ratio (A-weighted): 106,5 dB
THD 0,005% @ 1 Watts RMS, 0,003% @ 5 Watts RMS
Operating Voltage 7,8 ~ 30 V
Dimensions 250 x 50 x 150 mm
Inputs:
6 x RCA, balanced (via Cable Plug)
6 x High Level Input with EPS® PRO (via Cable Plug)
1 x Optical Stereo Input, S/PDIF 96 kHz, 24 bit
1 x Bluetooth® Stereo Input via Audio Streaming
1 x USB Type C Socket for PC Software
1 x RJ45 Input for Remote Controller
1 x Terminal incl. REM IN/OUT & Mode Preset Switching Input
Input Sensitivity Low Level 500 mV ~ 6 V
Input Sensitivity High Level 2 ~ 15 V or 15 ~ 40 V (switchable)
Input Impedance Low Level 10 kΩ
Input Impedance High Level 10/150/600 Ω (switchable)
Auto Turn-On Function DC / VOX / OFF
Outputs:
4 x Amplified High Power Speaker Output (via Cable Plug)
2 x Amplified Speaker Output (via Cable Plug)
6 x Low Level Output processed by DSP (via Cable Plug)
1 x Switching Output for External Fan +12V
€ 1199,00
Manufacturer's suggested retail price, changes and mistakes reserved.
All trademarks, trade names or brands are the property of their respective owners.
RECOMMENDED ACCESSORIES
RC-DQ
LCD Remote Controller
Incl. Connection Cable and Mounting Housing
