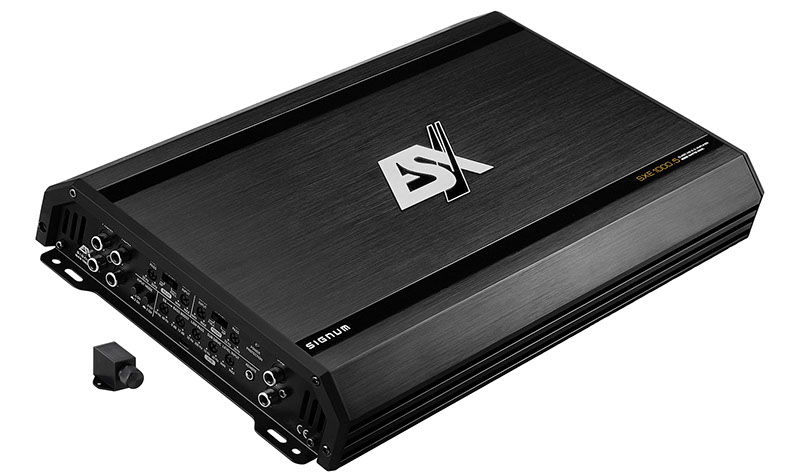

SXE1000.5

5-Channel Class A/B & D Hybrid Amplifier

The new SIGNUM SXE series is visually inspired by the successful HORIZON HXE series, but already shows with the massive connection terminals and the noble aluminum end panels that it plays a class higher. The new amplifiers are also the first choice in terms of sound: The high-quality NE5532 operation amplifiers in the input section ensure the finest resolutions over the entire frequency range and guarantee lowest distortion values. The amps were also upgraded with the high-level inputs with Auto Turn-On Function; they are equipped with the “Error Protection System” (EPS), so when connected to OEM factory radios no functions are impaired or error messages are written to the vehicle memory.

Features

  • Aluminum Heatsink with Acrylic Inlay
  • Flush-mount Diamond Cut-Logo
  • Aluminum Frames on the Endpanels
  • Massive Connection Terminals



  • Bottom Panel with sturdy Mounting Brackets
  • MOSFET PWM Power Supply, 3-Way Protection Circuit
  • Compact Bass Remote Controller
  • Class A/B & D Hybrid Technology

Specifications

5-Channel Class A/B & D Hybrid Amplifier

Dimensions 220 x 51 x 360/402 mm

Efficiency up to 64%



Class A/B:

4 x 75/125 Watts RMS @ 4/2 Ω

HPF 32 Hz - 2000 Hz



Class D:

1 x 200/350/500 Watts RMS @ 4/2/1 Ω

LPF 32 Hz - 300 Hz

Subsonic 10 Hz - 60 Hz

Bass Boost 0 - 12 dB @ 40 Hz - 60 Hz

€ 279,00

Manufacturer's suggested retail price, changes and mistakes reserved.
