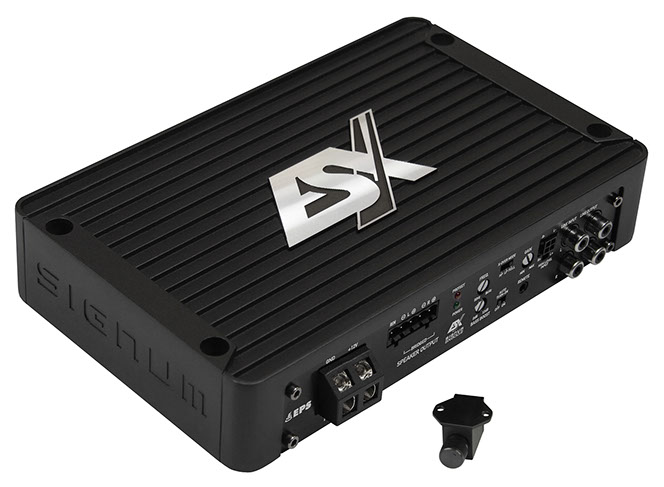

SX800.2
2-Channel Class D Digital Amplifier
With the new SIGNUM SX power amplifiers, ESX is opening a whole new chapter: For the first time, the series features heavy, precision-fit heat sinks made of die-cast aluminum – a feature previously unheard of in this price range. The advantages are obvious: The solid construction combined with modern Class D technology allows the cabinets to remain astonishingly compact and set new standards with their high efficiency and performance. This makes the SIGNUM SX series the ideal solution for anyone who demands exceptional quality in sound and workmanship.
The SX800.2 takes performance per channel and stability to a whole new level compared to the 4-channel all-rounder: Housed in the same compact die-cast aluminum heatsink, it delivers 2 x 180 watts at 4 ohms or a stable 2 x 280 watts RMS at 2 ohms. The real highlight – the SX800.2 is even stable at 1 ohm. In this mode, it delivers 2 x 400 watts RMS and can effortlessly drive even the most demanding speaker systems. Bridged operation in mono is also possible: Thanks to its generous power supply, it provides an impressive 560 or 800 watts RMS at 4 or 2 ohms, respectively – perfect for powerful subwoofer applications. A bass level remote control is also included as standard.
Features
Specifications
2-Channel Class D Digital Amplifier
2 x 180/280/400 Watts RMS @ 4/2/1 Ω
1 x 560/800 Watts RMS @ 4/2 Ω bridged
HPF/LPF 50 - 5000 Hz
Bass Boost 0 - 12 dB
Dimensions 140 x 44 x 225 mm
Efficiency up to 90%
€ 249,00
Manufacturer's suggested retail price, changes and mistakes reserved.
