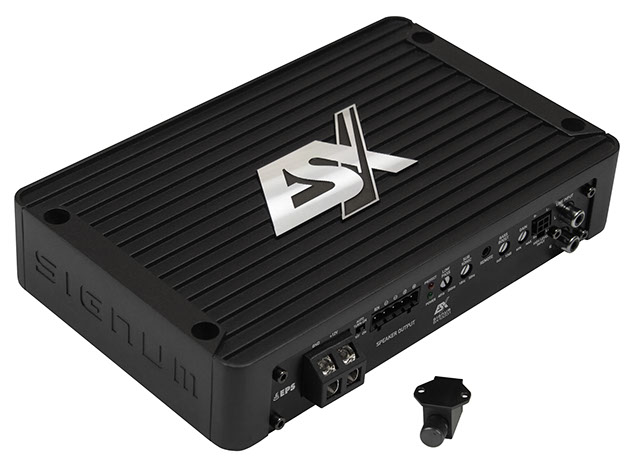

SX1000.1

Mono Class D Digital Amplifier

With the new SIGNUM SX power amplifiers, ESX is opening a whole new chapter: For the first time, the series features heavy, precision-fit heat sinks made of die-cast aluminum – a feature previously unheard of in this price range. The advantages are obvious: The solid construction combined with modern Class D technology allows the cabinets to remain astonishingly compact and set new standards with their high efficiency and performance. This makes the SIGNUM SX series the ideal solution for anyone who demands exceptional quality in sound and workmanship.



The compact SX1000.1 is the ideal complement to the full-range multi-channel amplifiers SX800.2 or SX800.4. This monoblock amplifier, housed in an identically sized aluminum heatsink, delivers a robust 800 watts at 2 ohms or 1080 watts RMS at 1 ohm – enough power to effortlessly drive even the most demanding subwoofers. Its compact design, combined with low-pass and subsonic filters and highly efficient Class D technology, enables precise signal processing. Within the SX range, it is the first choice for ambitious bass enthusiasts. The included remote level control allows for optimal bass adjustment directly from the driver's seat.

Features

  • Efficient Class D Technology with compact Dimensions
  • Die-cast Aluminum Heatsink with optimal Cooling Properties
  • RCA Inputs, RCA Outputs
  • Compact Bass Remote Controller



  • High Level Inputs with Error Protection System (EPS®)
  • Auto Turn-On Function
  • Start/Stop Ready
  • 1-Ohm stable

Specifications

Mono Class D Digital Amplifier

1 x 500/800/1080 Watts RMS @ 4/2/1 Ω
Subsonic-Filter 10 - 50 Hz

LPF 40 - 250 Hz

Bass Boost 0 - 12 dB

Dimensions 140 x 44 x 225 mm

Efficiency up to 90%

€ 269,00

Manufacturer's suggested retail price, changes and mistakes reserved.
