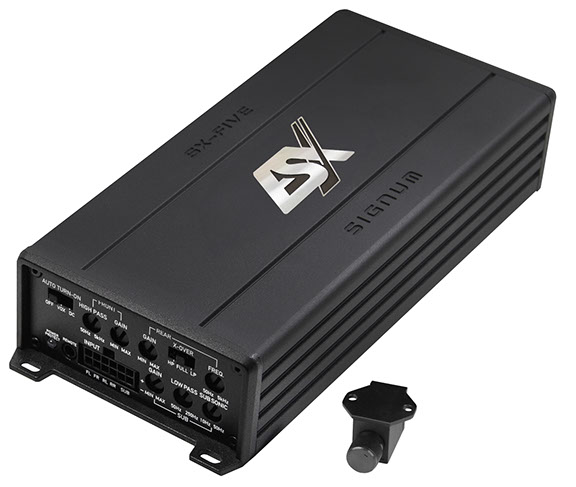

SX-FIVE

5-Channel Mini Class D Digital Amplifier

With the SIGNUM SX Mini series, ESX expands its extensive car audio portfolio with four brand-new MINI Class-D amplifiers that set new standards with their minimal dimensions, outstanding sound, and surprisingly high power output of up to 600 watts RMS. These compact powerhouses utilize state-of-the-art Class D technology, which, thanks to its high efficiency, enables low heat generation, thus making the exceptionally space-saving design—only 83 mm wide and 38 mm high—possible. This makes the mini amplifiers ideal for discreet installations, whether under the seat, in the side panel, or in the trunk. A particularly practical feature: The SX-FIVE, SX-TWO, and SX-ONE models come with a bass level remote control. This allows for convenient bass adjustment from the driver's seat at any time—perfect for those who value flexibility and maximum control in everyday driving.



The SX-FIVE is the ideal all-in-one amplifier for complete car audio setups. With its exceptionally low-distortion four channels for front and rear systems, plus a separate subwoofer channel, high-quality installations can be achieved with just one amplifier. Despite its compact design, the SX-FIVE's 600 W RMS output provides more than enough power for dynamic sound and powerful bass.

Features

  • Efficient Class D Technology with compact Dimensions
  • Die-cast Aluminum Heatsink with optimal Cooling Properties
  • RCA Inputs via Cable Connector
  • Compact Bass Remote Controller



  • High Level Inputs with Error Protection System (EPS®)
  • Auto Turn-On Function
  • Start/Stop Ready

Specifications

5-Channel Mini Class D Digital Amplifier

4 x 50/65/80 Watts RMS @ 4/3/2 Ω

+ 1 x 150/280 Watts RMS @ 4/2 Ω

HPF/LPF 50 - 5000 Hz (FRONT)

HPF/LPF 50 - 5000 Hz (REAR)

LPF 50 - 250 Hz (SUB)

Subsonic 10 - 50 Hz (SUB)

Dimensions 83 x 38 x 173 mm

Low THD-Design 0,009% @5W

Efficiency up to 85%

Downloads

Owner's Manual

€ 249,00

Manufacturer's suggested retail price, changes and mistakes reserved.
