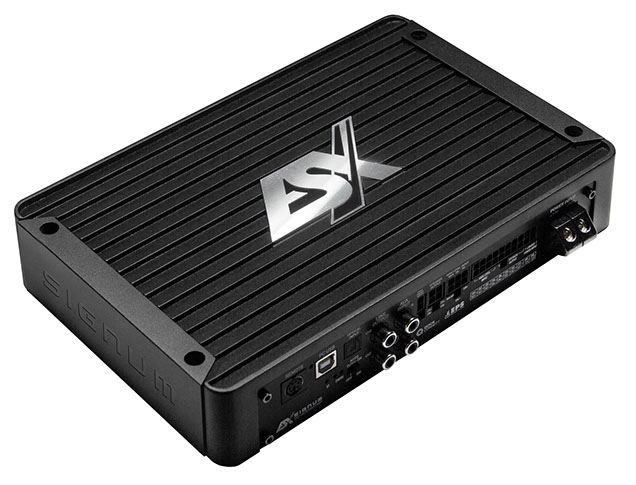

SE800.6DSP

6-Channel Class D Amplifier with 8-Channel Sound Processor

The SIGNUM SE800.6DSP power amplifier is currently the entry point into high-quality ESX DSP audio technology. With 6 amplifier and 8 DSP channels, it delivers outstanding sound quality with enormous adaptability. Thanks to integrated Bluetooth® and control via app or PC, operation is convenient and versatile. A special highlight is the automatically switchable convertible setup, which optimally adjusts the sound when the top is open. The overall package is rounded off by an elegant and robust cast aluminum housing. The ideal control center for taking a sound system to the next level.



The SE800.6DSP impresses with a powerful dual-core DSP processor that enables lightning-fast signal processing and precise adjustment of the sound. With 6x 125 watts RMS power, there are always enough reserves to supply all speakers with enough power and excellent sound fidelity.



Thanks to the integrated Bluetooth® module, you can stream your music wirelessly and at the same time control the processor's functions via the DSP MASTER app. With the user-friendly app, you can make all settings directly via your smartphone - very conveniently, without having to connect the PC. If you prefer PC control, you can also use the DSP MASTER PC software on your computer.



Another highlight is the optional RC-SXE remote control, with which you can not only control the master volume and the subwoofer level, but also manage music streamed from your smartphone directly via Bluetooth and also select tracks.

Features

  • Dual Core Audio Signal Processor 32 Bit, 122,88 MHz
  • Sampling Rate 48 kHz / Full HD Audio
  • Crossovers HP/LP/BP @ 6-48 dB slope
  • Time Correction 0 ~ 15 ms / 0,01 steps
  • Master Gain – 40 ~ +6 dB
  • Channel Gain – 40 ~ +6 dB
  • Phase Shift Normal/Inverted
  • Input mixer, Subwoofer controller
  • 8 x 31-Band Output Equalizer, +/-12/18 dB / 0,1 dB steps
  • DSP Control via DSP Master
    - PC Software for Microsoft    ® Windows™ 10 or newer
  • Integrated Bluetooth® Receiver for DSP control via App and Full HD Audio Streaming
  • REM OUT Function for external devices, switching output for e.g. convertible tops (Mode Preset Switch)
  • Optional Accessories: RC-SXE (OLED Remote Controller)

Specifications

Class D 6-Channel Amplifier with

Digital 8-Channel Sound Processor

6 x 80/125 Watts RMS @ 4/2 Ω

3 x 250 Watts RMS @ 4 Ω bridged

Frequency Range 10 ~ 21.000 Hz

Operating Voltage 80 ~ 18 V
Dimensions 250 x 47 x 163 mm


Inputs
6 x High Level Input with EPS® (via Cable Plug)

1 x Stereo AUX IN RCA R/L

1 x Optical Stereo, S/PDIF 192 kHz, 24 bit

1 x Bluetooth® Stereo Audio Receiver

1 x USB Typ B for PC Software

1 x DIN 6-pin for optional Remote Controller

Outputs

2 x Line Output RCA @ 2 V/RMS

6 x Speaker Output (via Cable Plug)

1 x Mode Preset Switch

€ 549,00

Manufacturer's suggested retail price, changes and mistakes reserved.

All trademarks, trade names or brands are the property of their respective owners.

RECOMMENDED ACCESSORIES

RC-SXE

OLED Remote Controller

Incl. Connection Cable and Mounting Housing
