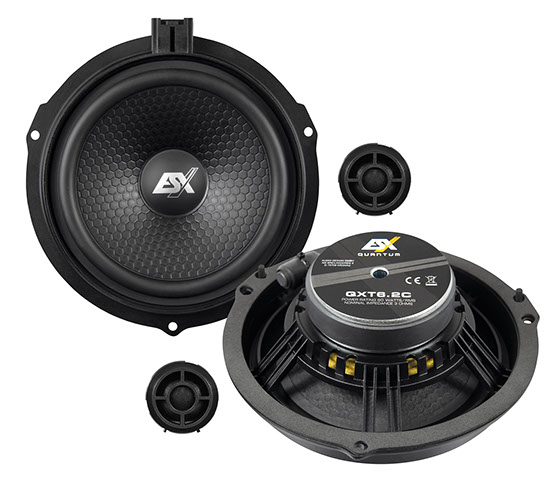

16 cm (6") 2-Way Component System

ESX offers a speaker system for the door area that is easy to retrofit for the very popular Ford Transit & Tourneo motorhomes. The 2-way component system from the QUANTUM series is highly resilient with 90 or 180 watts and provides the best musical accompaniment, especially on long journeys. The lightweight mid-woofers with ABS basket fit perfectly into the vehicle's original openings without additional adapter rings. There is an integral socket in the basket to accept the factory original cable plugs.


The mid-bass driver with a reinforced and water-repellent membrane is equipped with a very large, 13-ounce ferrite magnet. The lavish magnet driver, together with the deliberately low impedance of 3 ohms, leads to a very good efficiency of 93 dB at 2.83V/1m. In combination with the tried-and-tested 25 mm silk dome tweeter with neodymium driver, the QXT6.2C component system develops an incredibly lively joy of playing on any radio or amplifier.


16 cm (6") 2-Way Component System

90 Watts/RMS, 180 Watts/Max., Impedance 3 Ω

Frequency Range 50 - 24000 Hz

160 mm Midbass Speakers  with fiber-reinforced Cone

25 mm Silk Dome Neodymium Tweeters

Integrated 6dB Crossovers for Midbass Speakers

6dB Cable Crossovers for the Tweeters

Installation diameter 166 mm, Installation depth 44 mm

Plug+Play Connectors


Ford Transit 2014>

Ford Tourneo  2016>



Owner's Manual

Test Review

€ 249,00

Manufacturer's suggested retail price, changes and mistakes reserved.
