QXF6.2C

16 cm (6") 2-Way Component System

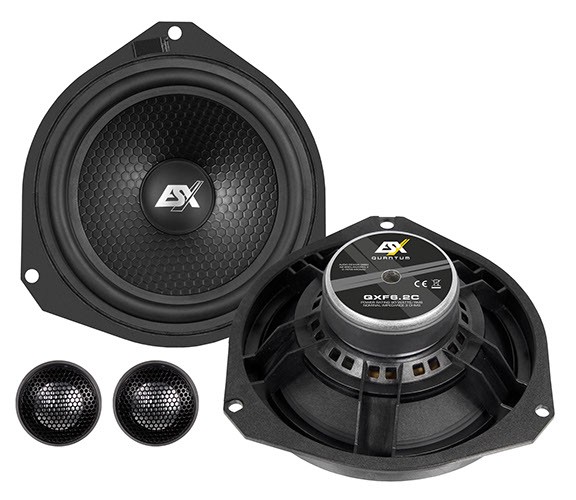

With the precisely fitting QUANTUM QXF6.2C 2-way speaker system for the popular Fiat Ducato platform, a sound upgrade can be implemented quickly and easily via plug & play installation. The improvement over the original speakers is amazing and ensures optimal and relaxed sound, especially on long journeys. The lightweight bass-midrange speakers with ABS basket fit perfectly into the original openings of the vehicle without additional adapter rings. These deliver powerful bass down to 50 Hz. At the top of the basket there is an integrated socket to connect the original speaker cables in the vehicle. With an astonishing efficiency of 93 dB and a load impedance of 3 Ω, the component set is a joy to play on any radio or amplifier. The 25 mm neodymium tweeters with aluminum dome play crystal clear and expand the sound reproduction of the bass-midrange speakers up to 24,000 Hz. The 6 dB cable splitter is already integrated in the connection cable of the tweeters, which ensures a clean separation at 3800 Hz.

Specifications

16 cm (6") 2-Way Component System

90 Watts/RMS, 180 Watts/Max., Impedance 3 Ω

Frequency Range 50 - 24000 Hz

160 mm Midbass Speakers  with fiber-reinforced Cone

25 mm Aluminum Tweeters

6dB Cable Crossovers

Installation diameter 155 mm, Installation depth 51 mm

Plug+Play Connectors

Compatibility

Fiat Ducato F8 (2021+)

Fiat Ducato III (Type 250, 2006+), Ducato IV (Type 290, 2015+)

Citroën Jumper II (Type 250, 2006+), Jumper III (Type 290, 2015+)

Peugeot Boxer II (Type 250, 2006+), Boxer III (Type 290, 2015+)

Opel Movano III (10/2021+)

Ford Ka II ( 2009-2016)



Downloads

Owner's Manual

€ 249,00

Manufacturer's suggested retail price, changes and mistakes reserved.
