QXE5.2C

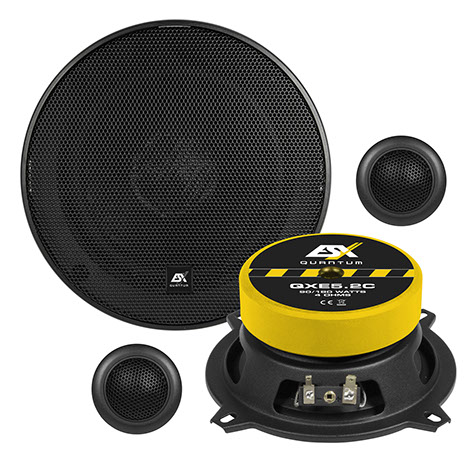

13 cm (5.25") 2-Way Component System

With the QUANTUM QXE Series ESX offers a high-quality and visually appealing speaker series, which has several new highlights to offer. The novel composite cones made of polypropylene with carbon reinforcement are additionally reinforced in the component systems with very stable glass fiber dust caps. Result: high sound neutrality and low distortion. Extremely powerful magnet drivers ensure very high efficiency up to 90 dB/W/m. This in turn ensures a clean bass performance with a lot of dynamics. The 25 or 30 mm voice coils on all models, in combination with the powerful magnets, deliver a high load capacity, since the magnets ensure a good dissipation of the heat. The compact crossovers are separated for bass and treble and are easy to install. The whole thing is perfected by the 25 mm silk-dome-tweeters, which reproduce a very clear and brilliant sound without being obtrusive.

Specifications

13 cm (5.25") 2-Way Component System

Power Rating 90/180 Watts RMS/Max.
Impedance 4 Ω

Frequency Range 62 - 22000 Hz

25 mm Voice Coils

12,9 oz. (0,36 kg) Magnet Drivers

25 mm Silk Dome Neodymium Tweeters

Separate Crossovers for Tweeter and Bass

incl. –6/–3db attenuation for treble

Protection Grilles

Installation depth 54 mm

Installation diameter 115 mm

Downloads

Owner's Manual

€ 189,00

Manufacturer's suggested retail price, changes and mistakes reserved.
