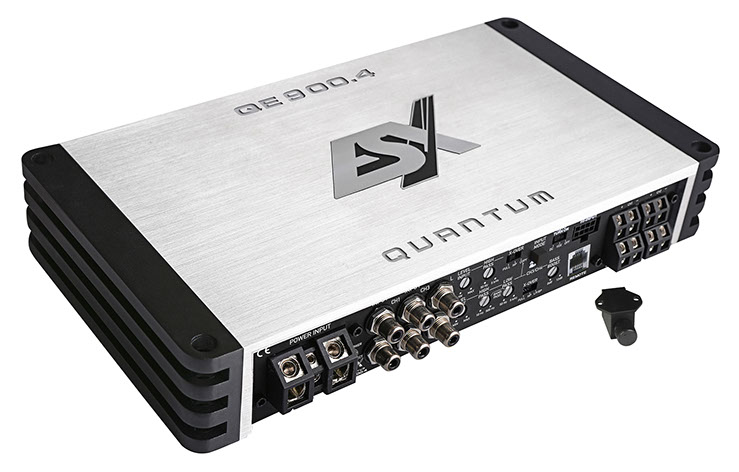

QE900.4

4-Channel Class D Digital Amplifier

 The newly developed ESX QUANTUM QE series is a class of its own. Conventional high power digital amplifiers usually cause interferences in the vehicle and disturb the radio reception. Not so with the new QE models: During the development period, special attention was paid to achieve an emission-free music playback. Also the sound is perfect,  because high-quality components guarantee an audiophile sound experience at its best. The features are also impressive: Auto Turn-On Function, EPS, variable crossover filters – everything your heart desires is on board. High-quality connectors and screwed RCA sockets complete the perfect appearance. All amplifiers are delivered with a sophisticated level remote control, which can be installed very space-saving with or without housing.

Features

  • Advanced Class D Technology with very high Efficiency
  • Selected and audiophile tuned Components
  • Massive Aluminum Heatsink
  • Heavy lateral Die-cast Parts
  • High Level Inputs with Error Protection System (EPS)



  • Auto Turn-On Function
  • Start/Stop Ready
  • MOSFET PWM Power Supply
  • 3-Way Protection Circuit
  • Compact Bass Remote Controller

Specifications

4-Channel Class D Digital Amplifier

4 x 150/225 Watts RMS @ 4/2 Ω

2 x 450 Watts RMS @ 4 Ω bridged

HPF 50-5000 Hz (CH1/2)

HPF 10-500 Hz (CH3/4)

LPF 50-5000 Hz (CH3/4)

Copy-Modus CH3/4 > CH1/2

Bass Boost 0-12 dB

Bandpass Function

Input Selector

Dimensions 280 x 46 x 165 mm

Efficiency up to 84%

€ 449,00

Manufacturer's suggested retail price, changes and mistakes reserved.
