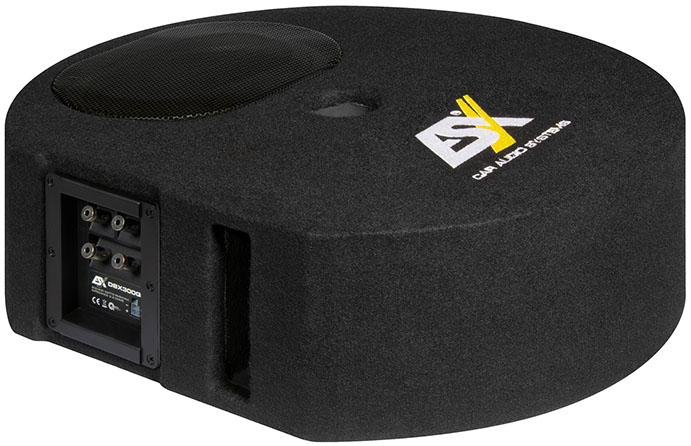

DBX300Q

15 x 23 cm (6 x 9”) Single Bassreflex System

The popular ESX DBX SERIES has been extended with the DBX300Q spare wheel recess subwoofer system for amplifiers, which provide about 200 watts RMS at 4 Ω. With the newly developed subwoofer with double voice coil, great basses are produced and thanks to the low height of only 15 cm, the subwoofer system in all major vehicles space.



Besides the conventional connection sockets, where the 2+2 Ω output can also be wired to a single 4 or even 1 Ω output, the box also has the new and innovative Quick Connect socket, which enables a plug+play connection with each amplifier via a 4 -fold Molex socket. This requires special Quick Connect subwoofer cables, available in 4 different lengths.

Specifications

15 x 23 cm (6 x 9”) Single Bassreflex System
Suitable for Spare Wheel Recess

Power Rating 200/400 Watts RMS/Max.

Impedance 2+2 Ω

Laterally located Bassreflex Port

Subwoofer with Scooped Paper Cone

Subwoofer Protection Grille

Quick Connect Socket

Dimensions Ø 50 x 15 cm

Downloads

Owner's Manual

€ 179,00

Manufacturer's suggested retail price, changes and mistakes reserved.
